digital LED Screens - MOTORISED

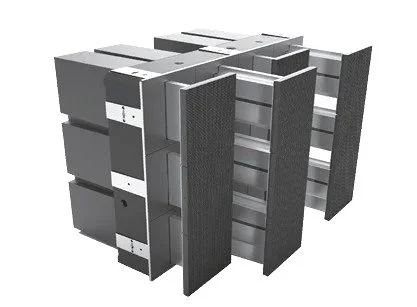

The Motorised LED Screens are an innovative LED display solution that brings digital content to life through dynamic movement. Hundreds of individual LED modules can move forwards and backwards in response to the content being displayed, creating a striking three-dimensional visual effect that goes far beyond a conventional LED screen.

Designed for highly creative installations, the system can deliver immersive 3D effects, audience interaction and real-time content experiences. With indoor and outdoor configurations, precision linear guidance, modular construction and forward movement of up to 600mm, the Motorised Series provides a unique platform for eye-catching installations in retail, entertainment, transport, museums and architectural environments.

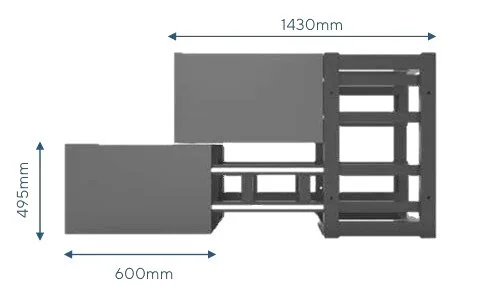

Digital LED screens motorised dimensions

key Features

Indoor and Outdoor weather resistant models
Selection of LED pixel pitches available from 1.56mm
Up to 600mm forward stroke for a 3D visual wave effect
Precision machining technology (industrial grade linear guide rails)
1.5mm fine module gap
Modular design
Noise reduction technology
Experienced design and installation team
Quick installation mounting holes - Suitable for rental environments
Light sensors to auto-adjust brightness during the day or night
Relevant media player is supplied to control content
Content Management System (CMS) to update content remotely
Ability to produce any size or configuration

choosing the right pixel pitch

Pixel pitch measures the distance (in millimeters) between the centres of two adjacent LED pixels. It tells you how tightly packed the pixels are, which directly affects the clarity and sharpness of the image.

A smaller pixel pitch means the pixels are closer, allowing the display to show finer detail and appear smoother, especially when viewed up close. Conversely, a larger pixel pitch increases the spacing between pixels, which can make individual pixels more noticeable and reduce image resolution at close viewing distances. Understanding pixel pitch is important when comparing screens or sensors, as it helps predict how crisp and detailed the final image will appear.

Read our recent Blog on How to Choose the Right Pixel Pitch for Your Digital LED Signage Project.

media players

There are several media players that can be used with Digital LED Screens, and the most appropriate one will depend on the specific project requirements. There are numerous media players available with different features and capabilities, from basic models to more advanced ones with 4K, HDR support, split-screen and multi-screen displays, real-time monitoring, and remote management.

Display Innovations will suggest the most appropriate media player for your Digital LED Screen, considering factors such as the size and resolution of your screen, the types of content you'll be displaying, and any additional features you may need.

ENERGY EFFICIENT LED SCREENS

Our Digital LED Screens are specifically designed to use less power compared to traditional LED screens (4.2V 40A and electrical power AC90-264V 47-63Hz, as opposed to 7.5V 60A and electrical power AC100-380V 55-75Hz).

We understand the importance of energy efficiency and strive to provide cutting-edge solutions that optimize power consumption without compromising on performance or visual quality.

Our LED Screens incorporate advanced technologies and innovative features that enable significant reductions in power usage, offering you a more sustainable and cost-effective solution to enable customers to enjoy several advantages.

Energy Savings: Our screens utilize power-saving mechanisms and efficient components, resulting in reduced energy consumption. This translates into lower electricity bills and long-term cost savings for your business.

Environmental Benefits: Decreasing power consumption aligns with your commitment to environmental responsibility. By using our energy-efficient screens, you contribute to a greener future by minimizing carbon emissions and reducing your ecological footprint.

Enhanced Durability: Lower power consumption results in less heat generation, which can extend the lifespan of our screens. This not only reduces maintenance and replacement costs but also decreases electronic waste, promoting a more sustainable approach.
